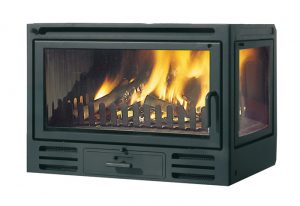

RIGA WITH GLASS SIDE

Home / / RIGA WITH GLASS SIDE

Wood insert with glass side, steel front panel and inside in cast iron. Complete with automatic mechanism for the regulation of combustion product gate valves. It is available with natural convection or forced ventilation hot air circulation, in relation to heating requirements.

Two outlets for ducting hot air, as an alternative to the front one.
Technical data min/max
width cm 71
depth cm 45
height cm 49
fireplace mouth measurement (W x D x H) cm 60x28x25
useful output kW 4/12
efficiency % 72
fuel consumption kg/h 1,3/4
Ø combustion product outlet cm 20
Ø external air intake cm 16
total weight kg 119
vol. that can be heated (depending on the type of system) 315

SMOKE OUTLET BACK

SMOKE OUTLET TOP

S.C.P. THE COMBUSTION REVOLUTION

A new advantageous combustion system called S.C.P. (Clean Combustion System) has been developed from the technical studies performed by Edilkamin, leader in stove and fireplace technology. An innovative system that guarantees cleaner combustion products and greater heat efficiency. In fact, after good “primary combustion”, obtained by a revolutionary combustion agent air distribution method, the process is optimised thanks to “post-combustion”. The air for “post-combustion” is introduced into the firebox in the ambit of the same system (SCP) to allow to lower pollutant levels (CO) and further heat recovery.

FORCED VENTILATION SYSTEM

All Edilkamin wood burning stoves are equipped with a forced ventilation system. For anyone who desires maximum heating efficiency, Edilkamin technology has elaborated a system of fans that optimise stove efficiency, further strengthening the heat output.

NATURAL CONVECTION

RADIO CONTROL/REMOTE CONTROL:

Allows to carry out the normal operations envisioned on the synoptic panel. It is therefore possible: to switch the stove on/off, manage the manual phase and manage the automatic phase.

REMOTE CONTROL WITH DISPLAY

THE SYNOPTIC PANEL:

Allows the management and control of all stove functioning phases, as well as adjusting parameters

HOURLY PROGRAMMER:

Program automatic switch on/off at the desired time.

AUTOMATIC OR MANUAL FUNCTIONING

COMFORT CLIMA

An extension of the concept of functioning in automatic, meaning that the stove switches off on reaching the desired temperature and switches back on again when the temperature drops (use only in well-isolated small rooms so that the function is not activated continuously)

AUTOCHECK

When cold, which allows to identify any problems immediately.

CRUCIBLE AUTOMATIC CLEANING:

Due to many hours of uninterrupted functioning. Do not exclude routine cleaning to be performed when the stove is cold (see technical card).

PREPARATION FOR MANAGEMENT AT A DISTANCE:

By connecting a telephonic responder/combiner to the circuit board it is possible to switch the stove on at a distance via telephone

HOT AIR OUTLET

RELAX FUNCTION

The RELAX function allows you to deactivate the forced ventilation with one simple gesture, allowing you to enjoy the warmth of natural convection in complete silence.

NIGHT FUNCTION

The NIGHT function allows programmed, automatic switch off of the stove when you want, for utmost comfort without wasting fuel.



PASSIVE HOUSE

Air-tight stoves draw in air directly from outdoors.
These units are ideal for use in modern passive houses, in which efficient heating is ensured by high levels of thermal insulation.

3C SYSTEM

Innovative ceramic combustor with catalyst unit that increases the combustion temperature, ensuring high efficiency while significantly reducing emissions.

DOMOKLIMA

Control unit for the centralized management of various components in a heating plant: solar panels, radiant floor panel, puffers, boilers for hot sanitary water, etc.

E-BRUSHER

System for cleaning deposits from the combustion chamber left from burning pellets.
It is a totally innovative, “Edilkamin Patented” system that exploits the dual action of the pellet-loading screw feeder.
The system is so effective that it offers months of autonomy without the need to clean the combustion chamber manually.

LAMBDA TEMP. PROBE

positioned in the flue path, it optimizes combustion.

AIR-TIGHT

“Air-tight” stoves are completely self-contained with respect to the installation environment and are also suitable for modern passive houses.



LEONARDO SYSTEM

System able to automatically manage pellet combustion.
Continuously detect the main parameters of combustion, and consequently intervenes to guarantee optimal operation and fuel savings.

WI-FI

Kit Wi-Fi optional, to manage all the basic functions of a pellet-burning product with smartphone or tablet, wherever you are.

SMOKE OUTLET SIDE

RELAX FUNCTION

The relax functionallows you to dectivate the force ventilation with one simple gesture, allowing you to enjoy the warmth of natural convection in complete silence.

NIGHT FUNCTION

The night function allows programmed, automatic switch off of the stove when you want, for utmost comfort with out wasting fuel.
